Laser powder cladding

Intricate and large-scale welding work

Laser cladding with powder is employed in a broad spectrum of applications ranging from intricate geometries to complex large-scale forming areas. Innovative filler materials and process technology allow us to weld practically all toolmaking materials to impressive levels of quality. We have developed our plant and welding system technology specially to address the needs of the automotive sector.

Service portfolio

  • CAD/CAM programming and simulation
  • Teach-in process
  • Welding of cast iron, cast steel and steel materials
  • Processing of high-quality soft and hard filler materials
  • High accessibility, even in narrow geometric areas, thanks to a slim design and pivoting workbench

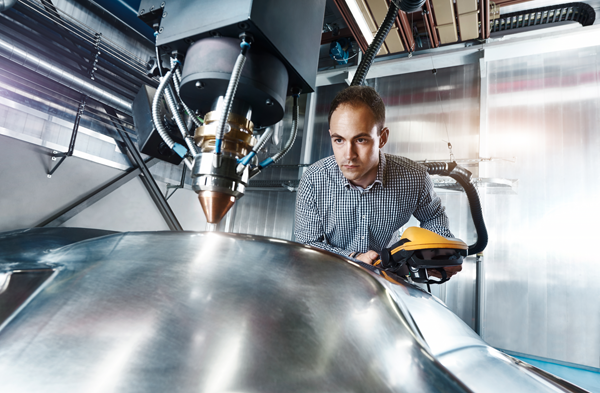

We create intricate and large-scale welding work.


  • Component protection through low heat input
  • Minimum warping
  • Standard avoidance of thermal pre and post-treatment of heat-treated components
  • Usually no milling preparation of the weld area
  • Maximum weld quality
  • Monitored and automated welding process
  • Lowest degree of mixing

System engineering

  • Robot-guided weld application
  • Workbench 5000 x 3000 mm, pivoting
  • Linear unit 8000 mm
  • 7 axes simultaneously
  • Supports up to max. 20 t
  • System 12000 x 8000 x 5500 mm
